316 304 Dinding Tipis Tabung Stainless Steel Mulus Diameter Kecil Bentuk Bulat
Properti Dasar
Tempat Asal:
Cina
Nama Merek:
New-Era
Sertifikasi:
ISO9001
Nomor Model:
ASTM A269
Properti Perdagangan
Jumlah Pesanan Minimum:
500kg
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T
Kemampuan Pasokan:
300 ton per bulan
Ringkasan Produk
Deskripsi Produk TORICH 316 304 Medis Sanitary Food Grade Pipa Dilas Diameter Kecil Dinding Tipis Bulat Mulus Stainless Steel Tabung Kapiler Standar ASTM A554, A249, A269 dan A270, A312 bahan 201 ( Ni 1,2%), 202 (Ni 3,5%~4,5%), 301(Ni 5%), 304 (Ni 8%, Cr 18%),316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), ...
Detail Produk
Menyoroti:
0.5mm Tabung Stainless Steel Bulat
,Dinding Tipis Pipa Stainless Steel Seamless
,316 Tabung Stainless Steel Mulus
Keyword:
Tabung Kapiler Stainless Steel
Surface:
180G, 320G, 400G Satin / Garis Rambut
Material:
201, 202, 304, 316, 316L Dll
OD Size:
0.5mm--8mm
WT Size:
0,08mm - 2mm
Usage:
Tabung Kimia Medis
Length:
Maks11800mm
Deskripsi Produk
Deskripsi Produk
TORICH 316 304 Medis Sanitary Food Grade Pipa Dilas Diameter Kecil Dinding Tipis Bulat Mulus Stainless Steel Tabung Kapiler
| Standar | ASTM A554, A249, A269 dan A270, A312 |
| bahan | 201 ( Ni 1,2%), 202 (Ni 3,5%~4,5%), 301(Ni 5%), 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430 |
| Ukuran | OD: 0.5mm--8mm WT: 0.08mm - 2mm Panjang: Sesuai dengan Kebutuhan Pelanggan |
| Permukaan Selesai | 180G, 320G, 400G Satin / Garis Rambut 400G, 500G, 600G atau 800G Cermin selesai |
| Tes dan Inspeksi | Uji squash, uji diperpanjang, uji tekanan air, uji pembusukan kristal, perlakuan panas, NDT |
| Aplikasi | Konstruksi dekorasi, pelapis, instrumen industri |
Toleransi
a) Diameter Luar: +/- 0.2mm
b) Ketebalan: +/- 0,02mm
c) Panjang: +/- 5mm
KONTROL KUALITAS:
1. Inspeksi Bahan Baku Masuk
2. Pemisahan Bahan Baku untuk menghindari pencampuran kelas baja
3. Ujung Pemanasan dan Palu untuk Menggambar Dingin
4. Cold Drawing dan Cold Rolling, inspeksi on line
5. Perlakuan Panas, +A, +SRA, +LC, +N, Q+T
6. Meluruskan-Pemotongan ke Inspeksi Pengukuran Selesai Panjang yang ditentukan
7. Pengujian Machanical di lab sendiri dengan Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture dll

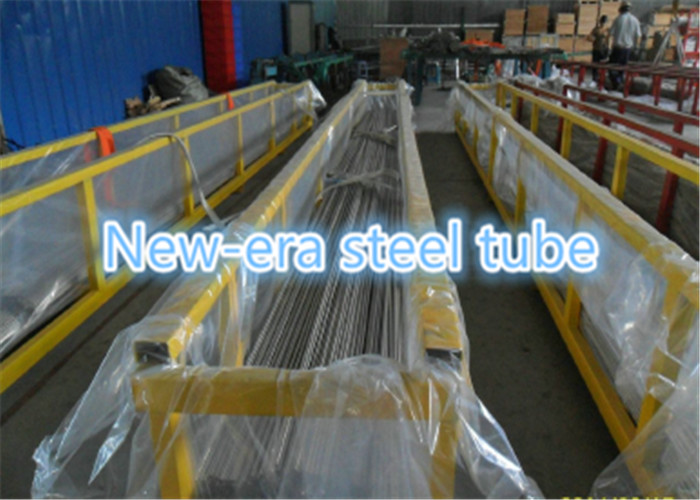

8. Pengepakan dan Stocking

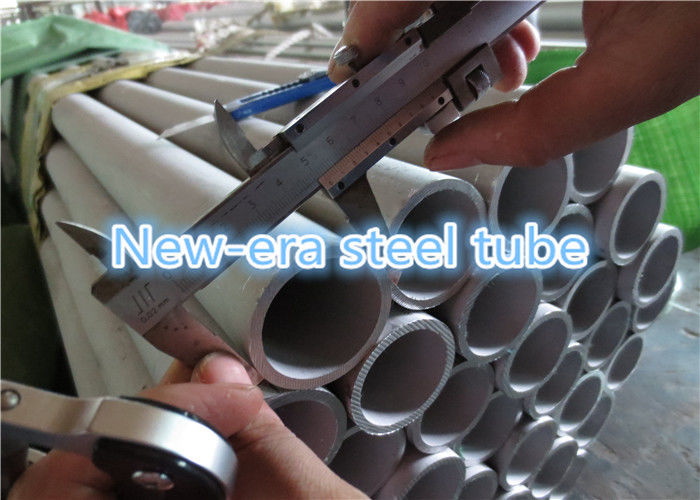

100% tabung baja kami diperiksa secara dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus eddy 100% dan uji ultrosonic untuk menghilangkan cacat longitudinal dan transversal.
