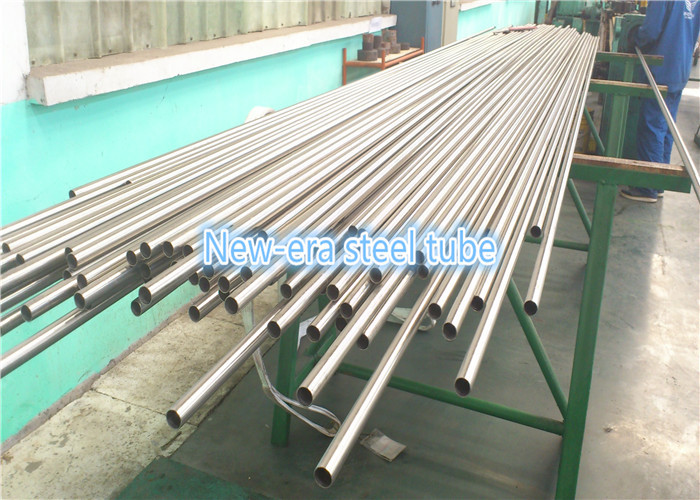

SCM440 Cold Rolled Seamless Steel Tube Untuk Tujuan Mekanis
Properti Dasar
Tempat Asal:
Cina
Nama Merek:
New Era
Sertifikasi:
ISO9001
Nomor Model:
Tabung baja canai dingin
Properti Perdagangan
Jumlah Pesanan Minimum:
1 Ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T
Kemampuan Pasokan:
3000 ton/bulan
Ringkasan Produk
Nama Produk: SCM415 SCM430 SCM435 SCM440 Tabung Baja Paduan Mekanik, Tabung Baja Mulus Gulung DinginBahan: SCM415 SCM430 SCM435 SCM440, 4130, 4140Rentang Ukuran: OD: 6-88mm, WT: 1-15mm, Panjang: 5.8m/6m, maksimal 11.8mKondisi Pengiriman: CW, SR, A, NAplikasi: tabung mekanis Kontrol kualitas:1. ...
Detail Produk
Menyoroti:
Tabung Baja Mulus Gulung Dingin
,Tabung Baja Gulung Dingin SCM440
,Tabung Baja Mulus 6m
Product Name:
SCM440 Cold Rolled Steel Tube
Delivery Condition:
HR, CW, SR, A, N
Material:
SCM415 SCM430 SCM435 SCM440
Application:
Tujuan Mekanis
Production Process:
Digulung dingin
Surface:
Bersih dan bebas dari kerak oksida
Deskripsi Produk
Nama Produk: SCM415 SCM430 SCM435 SCM440 Tabung Baja Paduan Mekanik, Tabung Baja Mulus Gulung Dingin
Bahan: SCM415 SCM430 SCM435 SCM440, 4130, 4140
Rentang Ukuran: OD: 6-88mm, WT: 1-15mm, Panjang: 5.8m/6m, maksimal 11.8m
Kondisi Pengiriman: CW, SR, A, N
Aplikasi: tabung mekanis
Kontrol kualitas:
1. Inspeksi Bahan Baku Masuk
2. Pemisahan Bahan Baku untuk menghindari pencampuran kelas baja
3. Ujung Pemanasan dan Palu untuk Menggambar Dingin

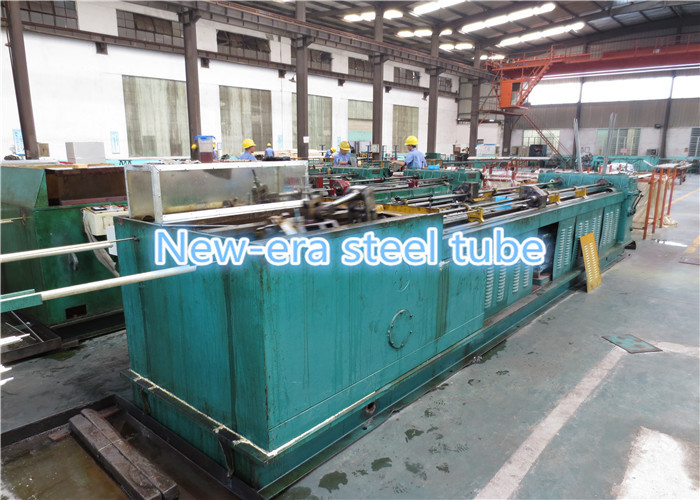

4. Cold Drawing atau Cold Rolling, Inspeksi on line
5. Perlakuan Panas: SR, A, N
6. Pelurusan / Pemotongan ke panjang yang ditentukan / Inspeksi Pengukuran Selesai
7. Pengujian Kualitas di lab sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Kekerasan, Kelurusan, dll.
8. Pengepakan dan Stocking.
Pengujian Arus Eddy 100%.
Pemeriksaan Toleransi Ukuran 100%.
Pemeriksaan permukaan tabung 100% untuk menghindari cacat permukaan.
| Nama Produk | Tujuan Mekanik Tabung Baja Canai Dingin |
| Bahan | SCM415, SCM430, SCM435, SCM440,4130, 4140 |
| Kondisi pengiriman | HR, CW, SR, A, N |
| Standar | JIS G3444 JISG3445 ASTM A519 ASTM A519 DIN EN10305-1 |
| Aplikasi | Penggunaan mekanis dan struktural |
| Sertifikat | TS16949, ISO 9001 |
| kode HS | 7304319000 |
| Waktu pengiriman | 45 hari |
| Pakcing | Bundel atau Kotak Kayu |
SCM415/SCM430/SCM435/SCM440
| Baja Cr-Mo | Bahan No | C | Si | M N | P | S | Cr | Mo | |
| Cr-Mo Baja |
SCM 415 (SAE 4115) |
AP | 0,15-0,18 | 0,15-0,35 | 0,60-0,85 | 0,030 maks. | 0,030 maks. | 0,90-1,20 | 0,15-0,30 |
| NOAP | |||||||||
| SCM 430 (SAE 4130) |
AP | 0,28-0,33 | 0,15-0,35 | 0,60-0,85 | 0,030 maks. | 0,030 maks. | 0,90-1,20 | 0,15-0,30 | |
| NOAP | |||||||||
| SCM 435 (SAE4135) |
AP | 0,33-0,38 | 0,15-0,35 | 0,60-0,85 | 0,030 maks. | 0,030 maks. | 0,90-1,20 | 0,15-0,30 | |
| NOAP | |||||||||
| SCM440 (SAE 4140) |
AP | 0.38-0.43 | 0,15-0,35 | 0,60-0,85 | 0,030 maks. | 0,030 maks. | 0,90-1,20 | 0,15-0,30 | |
| NOAP | |||||||||
Tags: Bahan Baja SCM440, Tabung Baja Canai Dingin, Produsen Tabung Baja, Tabung Baja SCM430
