CDS Seamless Mechanical Tubing SAE1026 Dengan Kekuatan Tinggi
Properti Dasar
Tempat Asal:
Cina
Nama Merek:
New Era
Sertifikasi:
ISO9001
Nomor Model:
ASTM A519
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T
Kemampuan Pasokan:
3000 ton/bulan
Ringkasan Produk
Tabung Mekanik Mulus ASTM A519 1010/1020/1026/1045/4130/4140 Rentang Ukuran: OD: 6-152mm, WT: 1-25mm, Panjang: 5,8m/6m, maksimal 11,8mKondisi Pengiriman: CW, SR, A, NAplikasi: Untuk aplikasi mekanis Seamless Mechanical Tubing ASTM A519, adalah salah satu kelebihan tubing kami.Kami secara ketat ...
Detail Produk
Menyoroti:
SAE1026 Seamless Mechanical Tubing
,Kekuatan tinggi Seamless Mechanical Tubing
,SAE1026 CDS Tubing
Product Name:
Tubing Mekanik Mulus
Delivery Condition:
SDM, CW, SR, A, N
OD Size:
6-152mm
WT Size:
1-25mm
Material:
1010, 1020, 1026, 1045, 4130
Application:
Tujuan Mekanis
Delivery Time:
45 hari
Packing:
Paket bundel
Deskripsi Produk
Tabung Mekanik Mulus ASTM A519 1010/1020/1026/1045/4130/4140
Rentang Ukuran: OD: 6-152mm, WT: 1-25mm, Panjang: 5,8m/6m, maksimal 11,8m
Kondisi Pengiriman: CW, SR, A, N
Aplikasi: Untuk aplikasi mekanis
Seamless Mechanical Tubing ASTM A519, adalah salah satu kelebihan tubing kami.Kami secara ketat memproduksi sesuai dengan persyaratan Standar ASTM A519.kami mengontrol toleransi ukuran OD yang akurat, konsentrisitas yang unggul, dan tingkat keseragaman yang tinggi dalam ketebalan dinding.Kami juga menerima persyaratan kekuatan atau ketangguhan yang lebih tinggi dari pelanggan untuk aplikasi tertentu.
100% Pengujian Arus Eddy.

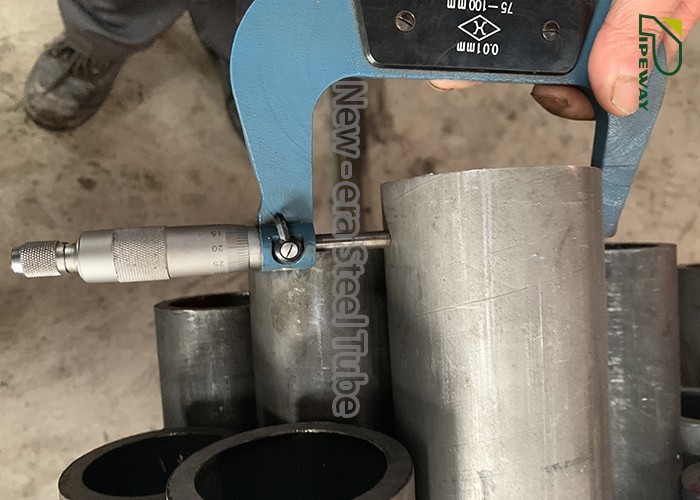

Pemeriksaan Toleransi Ukuran 100%.
Pemeriksaan permukaan tabung 100% untuk menghindari cacat permukaan.
| Nama Produk | ASTM A519 CDS Cold Drawn Seamless Mechanical Tubing |
| Bahan | 1010, 1020, 1026, 1045, 4130, 4140 |
| Kondisi pengiriman | SDM, CW, SR, A, N |
| Standar | ASTM A519 |
| Aplikasi | Penggunaan mekanis |
| Sertifikat | TS16949, ISO 9001 |
| Kode HS | 7304319000 |
| Waktu Pengiriman | 45 hari |
| Kata kunci | Tubing Mekanik Mulus |
| Nilai | C | M N | P ≤ | S ≤ | Ya | Kr | Mo |
| 1010 | 0,08--0,13 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1020 | 0,18--0,23 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1026 | 0,22--0,28 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 1045 | 0,43--0,50 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 4130 | 0,28--0,33 | 0,40--0,60 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| 4140 | 0,38--0,43 | 0,75--1,00 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| Nilai | Kondisi |
Kekuatan tekanan (Mpa) |
Kekuatan Hasil (Mpa) |
Pemanjangan (%) |
HRB |
| 1020 | SDM | 345 | 221 | 25 | 55 |
| CW | 483 | 414 | 5 | 75 | |
| SR | 448 | 345 | 10 | 72 | |
| SEBUAH | 331 | 193 | 30 | 50 | |
| N | 379 | 234 | 22 | 60 | |
| 4130 | SDM | 621 | 483 | 20 | 89 |
| SR | 724 | 586 | 10 | 95 | |
| SEBUAH | 517 | 379 | 30 | 81 | |
| N | 621 | 414 | 20 | 89 |
Tags: Tabung CDS, Tabung Mekanik Mulus, Tabung Baja, Tabung Mulus, Tabung Baja 1026, Baja SAE1026
