Ketebalan Dinding Berat Seamless Cold Drawn Steel Tube Tujuan Mekanik
Properti Dasar
Tempat Asal:
CINA
Nama Merek:
New Era
Sertifikasi:
ISO9001
Nomor Model:
Standar ASTM, DIN, EN, JIS
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T
Kemampuan Pasokan:
30000 Ton/Bulan
Ringkasan Produk
Dingin Ditarik Tebal Dinding Tabung Baja Seamless Tebal Konsentrisitas tinggi,Tinggikelurusan,Ketebalan dinding seragam DIN2391 St45 BK / EN10305-1 E255 +C / ASTM A519 1020 CW Nama Produk Tabung Mekanik Mulus ASTM A519 Bahan 1010, 1020, 1026, 1045, 4130, 4140 Kondisi pengiriman SDM, CW, SR, A, N ...
Detail Produk
Menyoroti:
Tabung Baja Dingin Ditarik Mekanis Mulus
,Dinding Berat Tabung Baja Dingin Ditarik Mulus
,DIN2391 Tabung Baja Gulung Dingin Mulus
Material:
St35, St45, St52, E235, E255, E355, 1020, 1026, 4130, 4140
Delivery Condition:
SDM, CW, SR, A, N
OD Size:
20-156mm
WT Size:
1-30mm
Characteristic:
Ketebalan Dinding Berat
Application:
Tujuan Mekanis
Wall Thickness Tolerance:
±5%
Production Process:
Ditarik Dingin
Deskripsi Produk

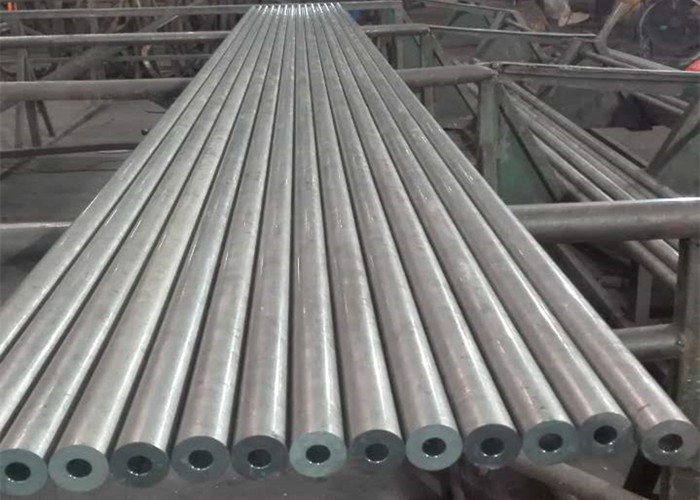

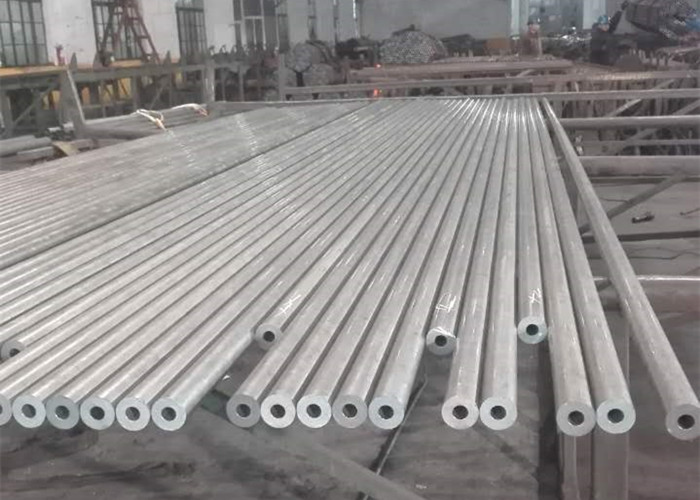

Dingin Ditarik Tebal Dinding Tabung Baja Seamless Tebal
Konsentrisitas tinggi,Tinggikelurusan,Ketebalan dinding seragam
DIN2391 St45 BK / EN10305-1 E255 +C / ASTM A519 1020 CW
| Nama Produk | Tabung Mekanik Mulus ASTM A519 |
| Bahan | 1010, 1020, 1026, 1045, 4130, 4140 |
| Kondisi pengiriman | SDM, CW, SR, A, N |
| Standar | ASTM A519 |
| Aplikasi | Penggunaan mekanis |
| Sertifikat | TS16949, ISO 9001 |
| Kode HS | 7304319000 |
| Waktu Pengiriman | 45 hari |
| Pengepakan | Bundel atau Kotak Kayu |
| Nilai | C | M N | P ≤ | S ≤ | Ya | Kr | Mo |
| 1010 | 0,08--0,13 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1020 | 0,18--0,23 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1026 | 0,22--0,28 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 1045 | 0,43--0,50 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 4130 | 0,28--0,33 | 0,40--0,60 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| 4140 | 0,38--0,43 | 0,75--1,00 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| Nilai | Kondisi |
Daya tarik (Mpa) |
Kekuatan Hasil (Mpa) |
Pemanjangan (%) |
HRB |
| 1020 | SDM | 345 | 221 | 25 | 55 |
| CW | 483 | 414 | 5 | 75 | |
| SR | 448 | 345 | 10 | 72 | |
| A | 331 | 193 | 30 | 50 | |
| N | 379 | 234 | 22 | 60 | |
| 4130 | SDM | 621 | 483 | 20 | 89 |
| SR | 724 | 586 | 10 | 95 | |
| A | 517 | 379 | 30 | 81 | |
| N | 621 | 414 | 20 | 89 |
| Tingkat kontrol toleransi tabung bantalan canai dingin dan dingin | |||
| Diameter luar | Toleransi Diameter | Diameter luar | Toleransi Diameter |
| (mm) | (mm) | (mm) | (mm) |
| ≤12.70 | ±0,08 | >50.80～63.5 | ±0,25 |
| 12.7～25.40 | ±0,10 | >63.50～76.20 | ±0,30 |
| >25.4～38.10 | ±0,15 | >76.20～101.60 | ±0,40 |
| >38.1～50.80 | ±0,20 | >101.60～203.20 | ±0,50 |
| Keterangan: Tolrance pada diameter luar dan diameter dalam, ketebalan dinding dapat ditentukan oleh permintaan pelanggan, |
|||
| Nama Produk | DIN2391 Tabung Baja Ditarik Dingin Mulus |
| Bahan | ST35, ST45, ST52 |
| Kondisi pengiriman | BK, BKW, BKS, GBK, NBK |
| Standar | DIN2391 |
| Rentang Ukuran | OD: 6-88mm, WT: 1-15mm |
| Aplikasi | Tujuan presisi tinggi, onderdil mobil, silinder oli, dll |
| Bilet Bulat | Baja Bao, Baja Xingcheng, Baja Huai, Baja Zhongtian |
| Kata kunci | Tabung Baja DIN2391 |
| Sertifikat | TS16949, ISO 9001 |
| Kode HS | 7304319000 |
| Waktu Pengiriman | 45 hari |
| Sedang mengemas | Bundel atau Kotak Kayu |
| Kualitas baja | Komposisi kimia | |||||
| Simbol | Nomor Bahan | C Maks. |
Ya Maks. |
M N | P Maks. |
S Maks. |
| ST35 | 1.0308 | 0,17 | 0,35 | ≥0,40 | 0,025 | 0,025 |
| ST45 | 1.0408 | 0,21 | 0,35 | ≥0,40 | 0,025 | 0,025 |
| ST52 | 1,0580 | 0,22 | 0,55 | ≤1,60 | 0,025 | 0,025 |
| Kualitas baja | BK | BKW | BKS | |||||
| Nama | TIDAK. | Rp Mpa |
A % |
Rp Mpa |
A % |
Rp Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
| ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
| ST52 | 1,0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
| Kualitas baja | GBK | NBK | ||||
| Nama | TIDAK. | Rp Mpa |
A % |
Rp Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
| ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
| ST52 | 1,0580 | 450 | 22 | 490--630 | 355 | 22 |
Kontrol kualitas:
1. Pemeriksaan Bahan Baku Masuk
2. Pemisahan Bahan Baku untuk menghindari pencampuran tingkat baja
3. Heating and Hammering End untuk Cold Drawing
4. Cold Drawing atau Cold Rolling, On line inspection
5. Perlakuan Panas: SR, A, N
6. Pelurusan/Pemotongan sesuai panjang yang ditentukan/Pemeriksaan Pengukuran Selesai
7. Pengujian Kualitas di lab sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Pemanjangan, Kekerasan, Kelurusan, dll.

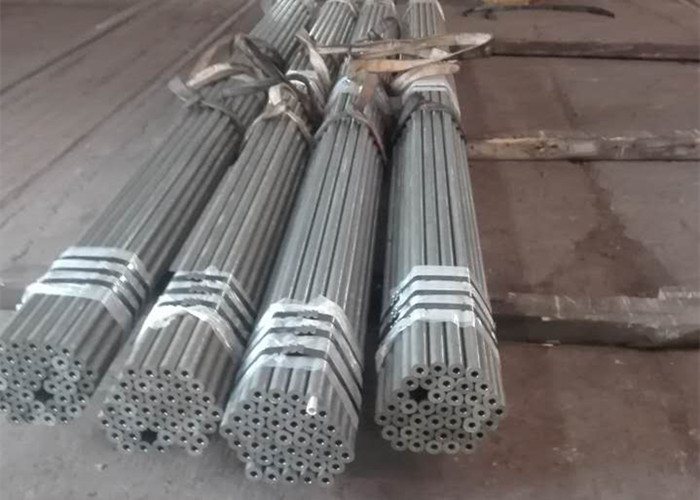

8. Pengepakan dan Penimbunan.
Tags: Tabung Tebal Dinding Berat, Tabung Baja, Tabung Baja Seamless
