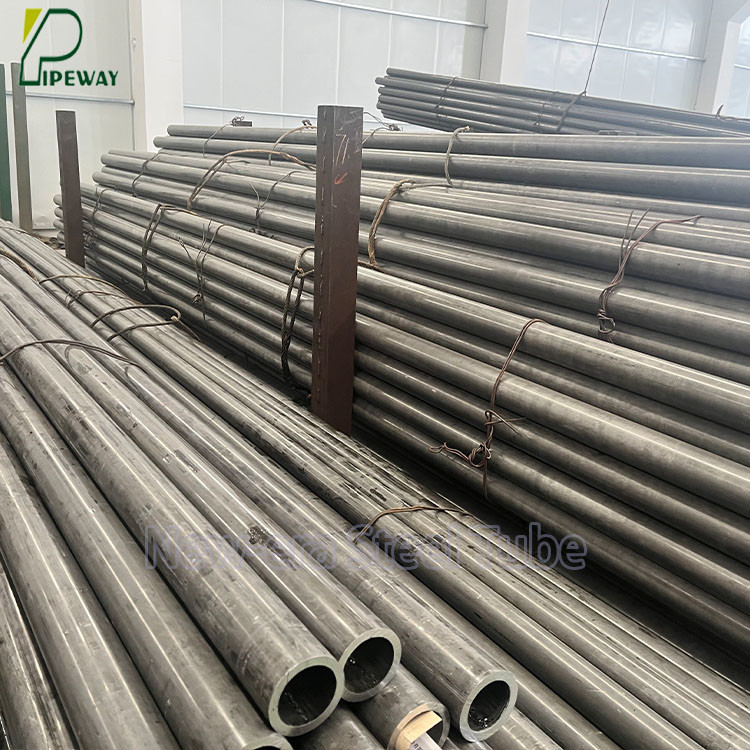

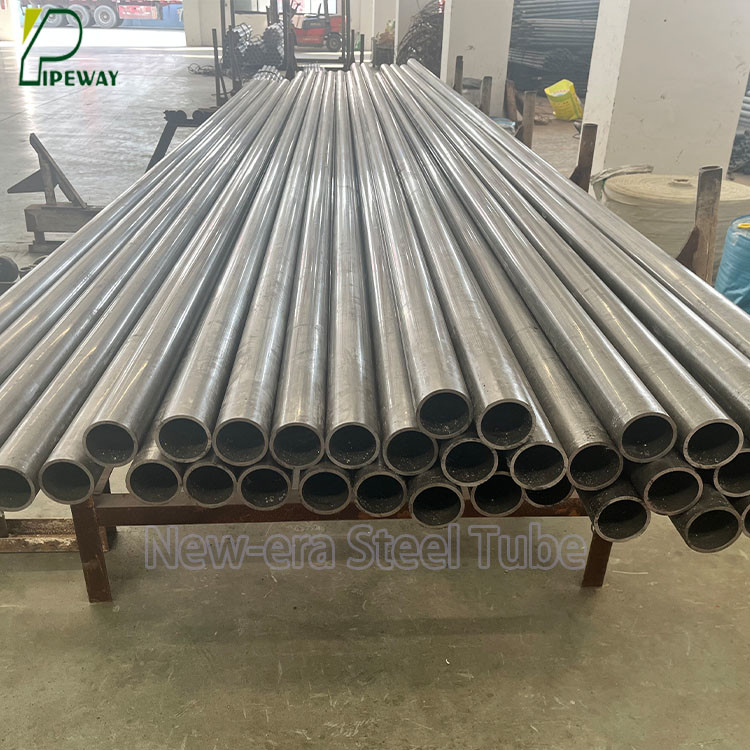

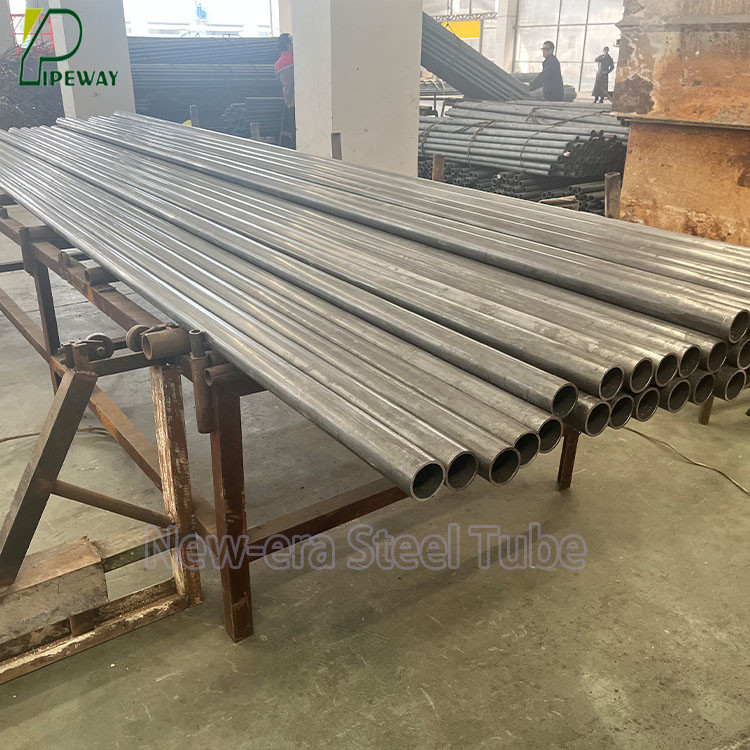

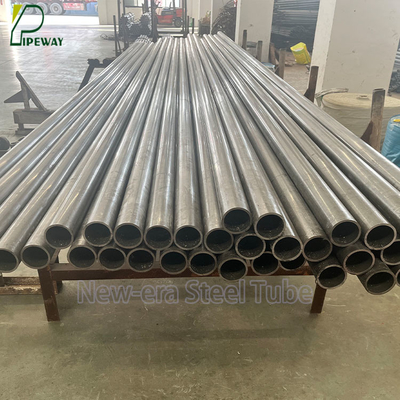

Cds Astm A519 Tubing Pipa Baja Seamless Ditarik Tebal 1-15mm
Properti Dasar
Tempat Asal:
Cina
Nama Merek:
New Era
Sertifikasi:
ISO9001,TS16949
Nomor Model:
ASTM A519
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T
Kemampuan Pasokan:
3000 ton/bulan
Ringkasan Produk
Tabung Baja Mulus CDS ASTM A519 Bahan: 1010, 1020, 1026, 1045, 4130, 4140Rentang Ukuran: OD: 6-168mm, WT: 1-15mm, Panjang: 5,8m/6m, maksimal 11,8mKondisi Pengiriman: CW, SR, A, NAplikasi: Untuk aplikasi mekanis Kualitas Stabil dengan Harga Kompetitif. Kontrol kualitas:1. Pemeriksaan Bahan Baku ...
Detail Produk
Menyoroti:
astm a519 ditarik pipa baja
,pipa baja ditarik tebal 15mm
,cds astm a519 tabung baja mulus
Material:
1010,1020,1026,1045,4130,4140
Delivery Condition:
SDM, CW, SR, A, N
OD Size:
6-168mm
WT Size:
1-15mm
Surface:
Bebas dari skala oksida
Application:
Tujuan Mekanis
Deskripsi Produk
Tabung Baja Mulus CDS ASTM A519
Bahan: 1010, 1020, 1026, 1045, 4130, 4140
Rentang Ukuran: OD: 6-168mm, WT: 1-15mm, Panjang: 5,8m/6m, maksimal 11,8m
Kondisi Pengiriman: CW, SR, A, N
Aplikasi: Untuk aplikasi mekanis
Kualitas Stabil dengan Harga Kompetitif.
Kontrol kualitas:
1. Pemeriksaan Bahan Baku Masuk
2. Pemisahan Bahan Baku untuk menghindari pencampuran tingkat baja
3. Heating and Hammering End untuk Cold Drawing
4. Cold Drawing atau Cold Rolling, On line inspection
5. Perlakuan Panas: SR, A, N
6. Pelurusan/Pemotongan sesuai panjang yang ditentukan/Pemeriksaan Pengukuran Selesai
7. Pengujian Kualitas di lab sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Pemanjangan, Kekerasan, Kelurusan, dll.
8. Pengepakan dan Penimbunan.
100% Pengujian Arus Eddy.
Pemeriksaan Toleransi Ukuran 100%.
Pemeriksaan permukaan tabung 100% untuk menghindari cacat permukaan.
| Nama Produk | ASTM A519 4130 Tabung Mekanik Mulus |
| Bahan | 1010, 1020, 1026, 1045, 4130, 4140 |
| Kondisi pengiriman | SDM, CW, SR, A, N |
| Standar | ASTM A519 |
| Aplikasi | Penggunaan mekanis |
| Sertifikat | TS16949, ISO 9001 |
| Kode HS | 7304319000 |
| Waktu Pengiriman | 45 hari |
| Pengepakan | Bundel atau Kotak Kayu |
| Nilai | C | M N | P ≤ | S ≤ | Ya | Kr | Mo |
| 1010 | 0,08--0,13 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1020 | 0,18--0,23 | 0,30--0,60 | 0,40 | 0,05 | -- | -- | -- |
| 1026 | 0,22--0,28 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 1045 | 0,43--0,50 | 0,60--0,90 | 0,40 | 0,05 | -- | -- | -- |
| 4130 | 0,28--0,33 | 0,40--0,60 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| 4140 | 0,38--0,43 | 0,75--1,00 | 0,04 | 0,04 | 0,15--0,35 | 0,80--1,10 | 0,15--0,25 |
| Nilai | Kondisi |
Daya tarik (Mpa) |
Kekuatan Hasil (Mpa) |
Pemanjangan (%) |
HRB |
| 1020 | SDM | 345 | 221 | 25 | 55 |
| CW | 483 | 414 | 5 | 75 | |
| SR | 448 | 345 | 10 | 72 | |
| A | 331 | 193 | 30 | 50 | |
| N | 379 | 234 | 22 | 60 | |
| 4130 | SDM | 621 | 483 | 20 | 89 |
| SR | 724 | 586 | 10 | 95 | |
| A | 517 | 379 | 30 | 81 | |
| N | 621 | 414 | 20 | 89 |
